Easily switchable between cooler and freezer
Maximized storage space
Suitable for GN pans (max. depth 150 mm)
Ventilated cooling for fast pull-down and even temperature
Automatic defrost
Maximum load capacity per drawer: 60 kg

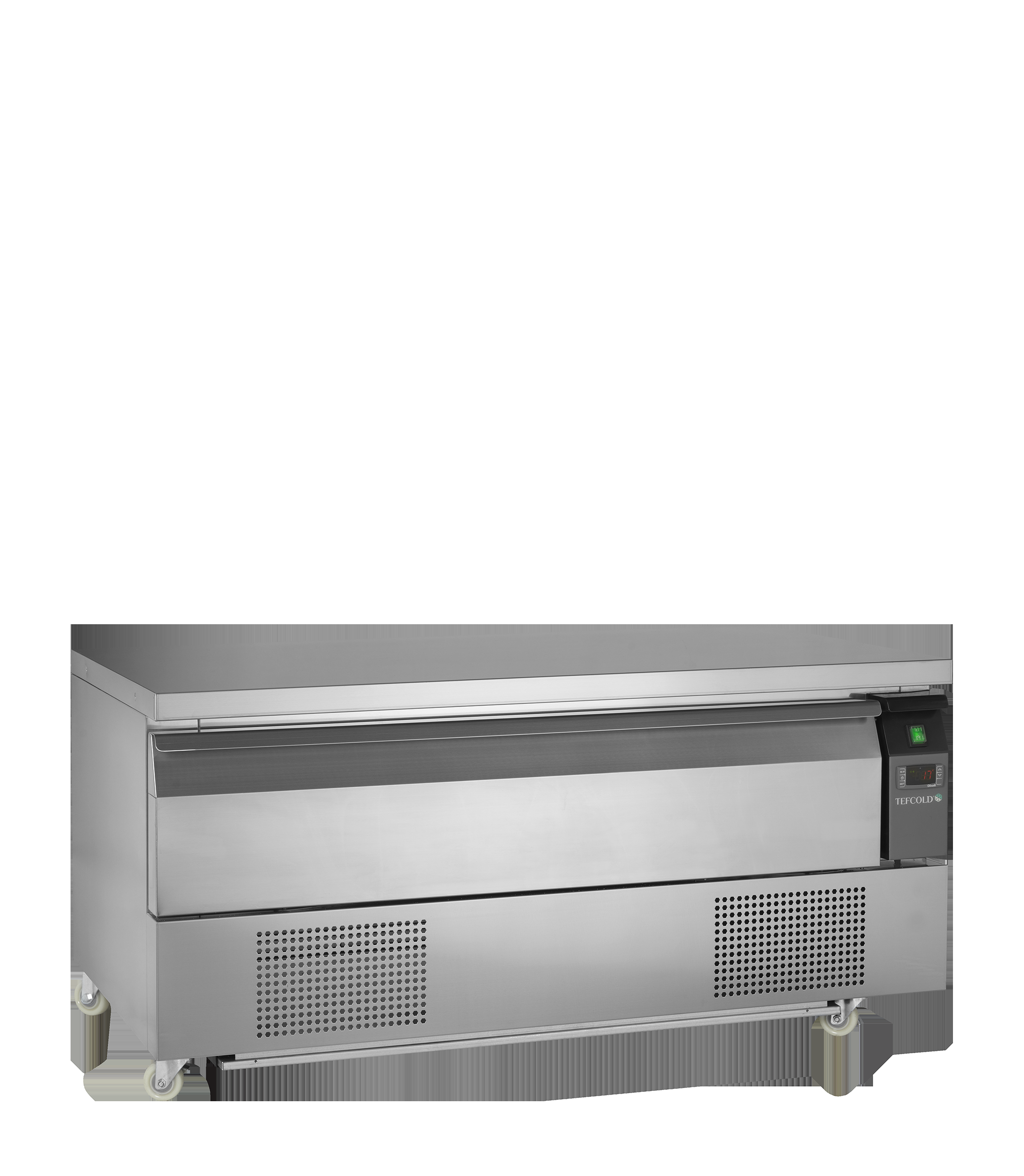

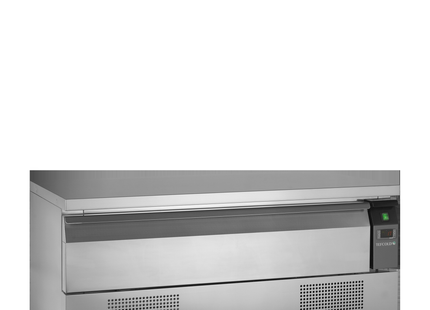

Maximum load capacity of table top: 240 kgThe UD range of uni-drawers offers a flexible solution, where you can switch the drawers individually from cooling to freezing at the touch of a button. This is perfect when space is limited. Temperature range can be set from -22 to -18 degrees, or +2 to +8 degrees. It is available in two different widths, with 1 or 2 drawers. They are all dimensioned for GN canteens up to 150 mm deep. The top plate is designed to be able to withstand heavy appliances, such as deep fryers, ovens and the like.
Technical specifications
Measures and Content
-
Gross / Net Weight:
105 / 90 kg
-
40ft Container Load :
81 pcs
-
Gross / Net Volume:
116 / 77 l
-
Climate Class:
4
Design and Material
-
Exterior Finish:
SS304
-
Interior Finish:
SS304
-
Castors:
Castors
-
Lock:
No
-
Interior Light:
No
Cooling and Functions
-
Type of Cooling:
Ventilated
-
Type of Defrost:
Airflow/Electrical heater
-
Refrigerant:
R290
-
Refrigerant Charge:
70 g
Power and Consumption
-
Energy Class:
D
-
Energy Consumption:
4.49 kWh/24h
-
Annual Energy Cons.:
1638.85 kWh/year
-
EEI:
57.9 %
-
Input Power:
270 W
-
Voltage / Frequency:
220-240/50 V/Hz
-
Noise Level:
42 dB(A)
Dimensions
-
External Dimension (WxDxH):
1230 x 700 x 605
mm
-
Internal Dimension (WxDxH):
1000 x 565 x 205 mm
-
Packed Dimension (WxDxH):
1300 x 760 x 700 mm
Other
-
GTIN / EAN:
5708181762674
-
Temperature Range:
+2 to +8 / -18 to -22 °C
-
Insulation Density:
38 kg/m³
-
Drawers:
1 pcs
-
EPREL No:
2650512
